Conway specifics

This is the specification of the Conway era of the Cardano ledger. As with previous specifications, this document is an incremental specification, so everything that isn’t defined here refers to the most recent definition from an older specification.

This is the work-in-progress specification of the Cardano ledger. The Agda source code with which we formalize the ledger specification and which generates this pdf document is open source and resides at the following

Repository url: https://github.com/IntersectMBO/formal-ledger-specifications

The current status of each individual era is described in Table 1.

Table 1. Specification Progress

Era	Figures	Prose	Cleanup
Shelley	Partial	Partial	Not started
Shelley-MA	Partial	Partial	Not started
Alonzo	Partial	Partial	Not started
Babbage	Not started	Not started	Not started
Conway	Complete	Partial	Partial

Overview¶

This document describes, in a precise and executable way, the behavior of the Cardano ledger that can be updated in response to a series of events. Because of the precise nature of the document, it can be dense and difficult to read at times, and it can be helpful to have a high-level understanding of what it is trying to describe, which we present below. Keep in mind that this section focuses on intuition, using terms (set in italics) which may be unfamiliar to some readers, but rest assured that later sections of the document will make the intuition and italicized terms precise.

A Note on Agda¶

This specification is written using the . We have made a considerable effort to ensure that this document is readable by people unfamiliar with Agda (or other proof assistants, functional programming languages, etc.). However, by the nature of working in a formal language we have to play by its rules, meaning that some instances of uncommon notation are very difficult or impossible to avoid. Some are explained in the Notation and Agda Essentials sections, but there is no guarantee that those sections are complete. If the meaning of an expression is confusing or unclear, please open an issue in the formal ledger repository with the "notation" label.

Separation of Concerns¶

The Cardano Node consists of three pieces,

a networking layer responsible for sending messages across the internet,
a consensus layer establishing a common order of valid blocks, and
a ledger layer which determines whether a sequence of blocks is valid.

Because of this separation, the ledger can be modeled as a state machine,

\[s \xrightarrow[X]{b} s'.\]

More generally, we will consider state machines with an environment,

\[Γ ⊢ s \xrightarrow[X]{b} s'.\]

These are modelled as 4-ary relations between the environment \(Γ\), an initial state \(s\), a signal \(b\) and a final state \(s'\). The ledger consists of roughly 25 (depending on the version) such relations that depend on each other, forming a directed graph that is almost a tree. STS diagram. Thus each such relation represents the transition rule of the state machine; \(X\) is simply a placeholder for the name of the transition rule.

Ledger State Transition Rules¶

By a ledger we mean a structure that contains information about how funds in the system are distributed accross accounts—that is, account balances, how such balances should be adjusted when transactions and proposals are processed, the ADA currently held in the treasury reserve, a list of stake pools operating the network, and so on.

The ledger can be updated in response to certain events, such as receiving a new transaction, time passing and crossing an epoch boundary, enacting a governance proposal, to name a few. This document defines, as part of the behaior of the ledger, a set of rules that determine which events are valid and exactly how the state of the ledger should be updated in response to those events. The primary aim of this document is to provide a precise description of this system—the ledger state, valid events and the rules for processing them.

We will model this via a number of state transition systems (STS) which from now on we refer to as “transition rules” or just “rules.” These rules describe the different behaviors that determine how the whole system evolves and, taken together, they comprise a full description of the ledger protocol. Each transition rule consists of the following components:

an environment consisting of data, read from the ledger state or the outside world, which should be considered constant for the purposes of the rule;
an initial state, consisting of the subset of the full ledger state that is relevant to the rule and which the rule can update;
a signal or event, with associated data, that the rule can receive or observe;
a set of preconditions that must be met in order for the transition to be valid;
a new state that results from the transition rule.

For example, the UTXOW transition rule defined in UTXOW inference rules of the Utxow module checks that, among other things, a given transaction is signed by the appropriate parties.

The transition rules can be composed in the sense that they may require other transition rules to hold as part of their preconditions. For example, the UTXOW rule mentioned above requires the UTXO rule, which checks that the inputs to the transaction exist, that the transaction is balanced, and several other conditions.

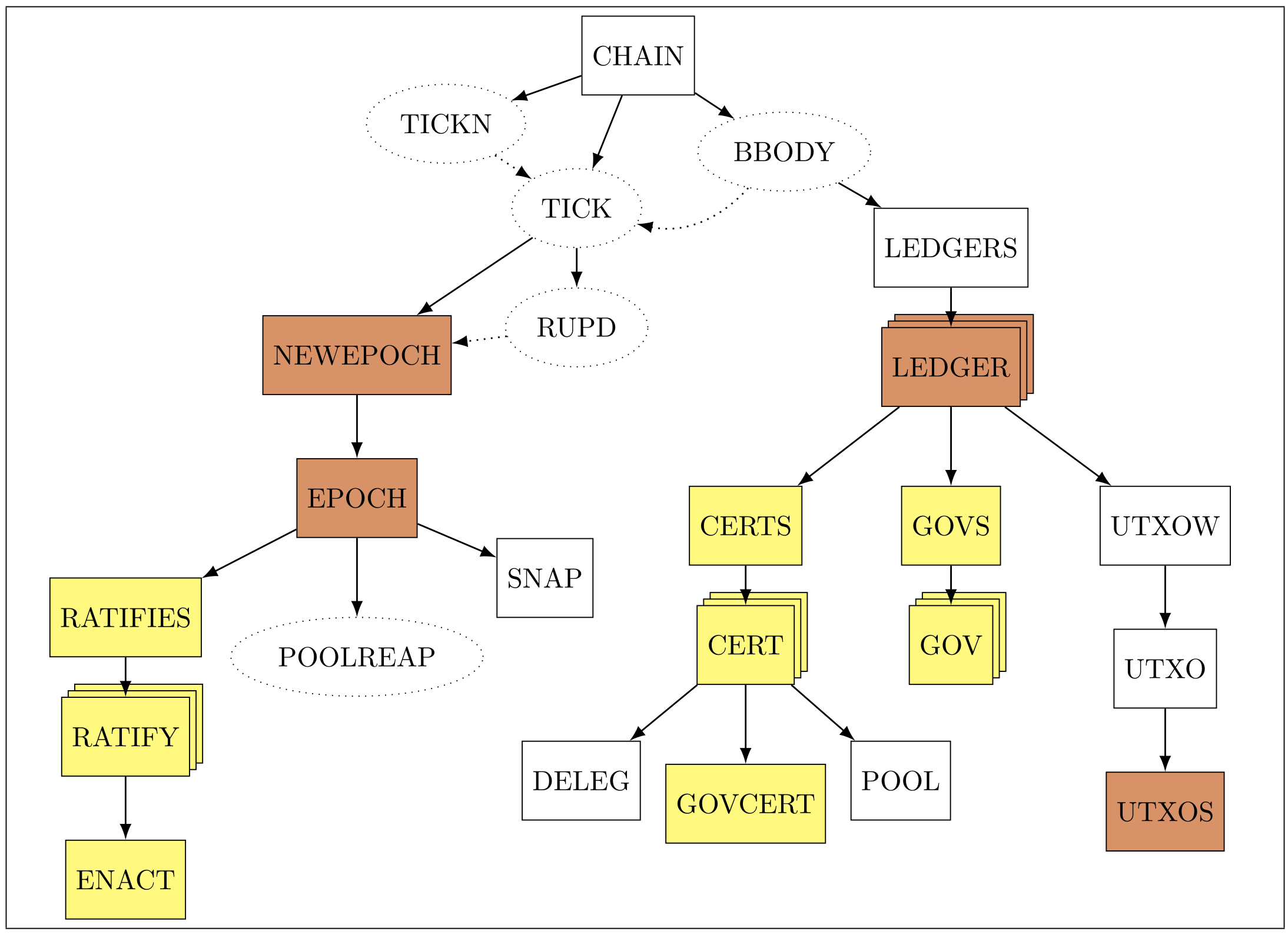

Figure: STS Diagram

State transition rules of the ledger specification, presented as a directed graph; each node represents a transition rule; an arrow from rule A to rule B indicates that B appears among the premises of A; a dotted arrow represents a dependency in the sense that the output of the target node is an input to the source node, either as part of the source state, the environment or the event ( rules added in Conway; rules modified in Conway; dotted ellipses represent rules that are not yet formalized in Agda).

A brief description of each transition rule is provided below, with a link to an Agda module and reference to a section where the rule is formally defined.

CHAIN is the top level transition in response to a new block that applies the NEWEPOCH transition when crossing an epoch boundary, and the LEDGERS transition on the list of transactions in the body.
NEWEPOCH computes the new state as of the start of a new epoch; includes the previous EPOCH transition.
EPOCH computes the new state as of the end of an epoch; includes the ENACT, RATIFY, and SNAP transition rules.
RATIFY decides whether a pending governance action has reached the thresholds it needs to be ratified.
ENACT applies the result of a previously ratified governance action, such as triggering a hard fork or updating the protocol parameters.
SNAP computes new stake distribution snapshots.
LEDGERS applies LEDGER repeatedly as needed, for each transaction in a list of transactions.
LEDGER is the full state update in response to a single transaction; it includes the UTXOW, GOV, and CERTS rules.
CERTS applies CERT repeatedly for each certificate in the transaction.
CERT combines DELEG, POOL, GOVCERT transition rules, as well as some additional rules shared by all three.
DELEG handles registering stake addresses and delegating to a stake pool.
GOVCERT handles registering and delegating to DReps.
POOL handles registering and retiring stake pools.
GOV handles voting and submitting governance proposals.
UTXOW checks that a transaction is witnessed correctly with the appropriate signatures, datums, and scripts; includes the UTXO transition rule.
UTXO checks core invariants for an individual transaction to be valid, such as the transaction being balanced, fees being paid, etc; include the UTXOS transition rule.
UTXOS checks that any relevant scripts needed by the transaction evaluate to true.

Reflexive-transitive Closure¶

Some state transition rules need to be applied as many times as possible to arrive at a final state. Since we use this pattern multiple times, we define a closure operation which takes a transition rule and applies it as many times as possible.

The closure RTCI of a relation RTCB is defined in Reflexive transitive closure. In the remainder of the text, the closure operation is called RTC.

Reflexive transitive closure¶

module _ (_⊢_⇀⟦_⟧_ : C → S → Sig → S → Type) where

Closure type

  data _⊢_⇀⟦_⟧*_ : C → S → List Sig → S → Type where

Closure rules

    RTC-base :
      Γ ⊢ s ⇀⟦ [] ⟧* s

    RTC-ind :
      ∙ Γ ⊢ s  ⇀⟦ sig  ⟧  s'
      ∙ Γ ⊢ s' ⇀⟦ sigs ⟧* s''
      ───────────────────────────────────────
      Γ ⊢ s ⇀⟦ sig ∷ sigs ⟧* s''

Computational¶

Since all such state machines need to be evaluated by the nodes and all nodes should compute the same states, the relations specified by them should be computable by functions. This can be captured by the definition in Computational relations which is parametrized over the state transition relation.

Computational relations¶

record Computational (_⊢_⇀⦇_,X⦈_ : C → S → Sig → S → Type) : Type where
  field
    compute     : C → S → Sig → Maybe S
    ≡-just⇔STS  : compute Γ s b ≡ just s' ⇔ Γ ⊢ s ⇀⦇ b ,X⦈ s'

  nothing⇒∀¬STS : compute Γ s b ≡ nothing → ∀ s' → ¬ Γ ⊢ s ⇀⦇ b ,X⦈ s'

  nothing⇒∀¬STS comp≡nothing s' h rewrite ≡-just⇔STS .Equivalence.from h =
    case comp≡nothing of λ ()

Unpacking this, we have a compute function that computes a final state from a given environment, state and signal. The second piece is correctness: compute succeeds with some final state if and only if that final state is in relation to the inputs.

This has two further implications:

Since compute is a function, the state transition relation is necessarily a (partial) function; i.e., there is at most one possible final state for each input data. Otherwise, we could prove that compute could evaluates to two different states on the same inputs, which is impossible since it is a function.
The actual definition of compute is irrelevant—any two implementations of compute have to produce the same result on any input. This is because we can simply chain the equivalences for two different compute functions together.

What this all means in the end is that if we give a Computational instance for every relation defined in the ledger, we also have an executable version of the rules which is guaranteed to be correct. This is indeed something we have done, and the same source code that generates this document also generates a Haskell library that lets anyone run this code.

Sets & Maps¶

The ledger heavily uses set theory. For various reasons it was necessary to implement our own set theory (there will be a paper on this some time in the future). Crucially, the set theory is completely abstract (in a technical sense—Agda has an abstract keyword) meaning that implementation details of the set theory are irrelevant. Additionally, all sets in this specification are finite.

We use this set theory to define maps as seen below, which are used in many places. We usually think of maps as partial functions (i.e., functions not necessarily defined everywhere—equivalently, "left-unique" relations) and we use the harpoon arrow to distinguish such maps from standard Agda functions which use . The code below also gives notation for the powerset operation, PowerSet, used to form a type of sets with elements in a given type, as well as the subset relation and the equality relation for sets.

When we need to convert a list to its set of elements, we write fromList .

open Theory th using (_∈_) renaming (Set to ℙ)
private variable
  a c : Level
  A : Type a
Σ-syntax' : (A : Type a) → (A → Type c) → Type _
Σ-syntax' = Σ
syntax Σ-syntax' A (λ x → B) = x ∈ A ﹐ B

_⊆_ : {A : Type} → ℙ A → ℙ A → Type
X ⊆ Y = ∀ {x} → x ∈ X → x ∈ Y

_≡ᵉ_ : {A : Type} → ℙ A → ℙ A → Type
X ≡ᵉ Y = X ⊆ Y × Y ⊆ X

Rel : Type → Type → Type
Rel A B = ℙ (A × B)

left-unique : {A B : Type} → Rel A B → Type
left-unique R = ∀ {a b b'} → (a , b) ∈ R → (a , b') ∈ R → b ≡ b'

_⇀_ : Type → Type → Type
A ⇀ B = r ∈ Rel A B ﹐ left-unique r

Propositions as Types, Properties and Relations¶

In type theory we represent propositions as types and proofs of a proposition as elements of the corresponding type. A unary predicate is a function that takes each x (of some type A) and returns a proposition P(x). Thus, a predicate is a function of type A → Type. A binary relation R between A and B is a function that takes a pair of values x and y and returns a proposition asserting that the relation R holds between x and y. Thus, such a relation is a function of type A × B → Type or A → B → Type.

These relations are typically required to be decidable, which means that there is a boolean-valued function that computes whether the predicate holds or not. This means that it is generally safe to think of predicates simply returning a boolean value instead.
